600-2

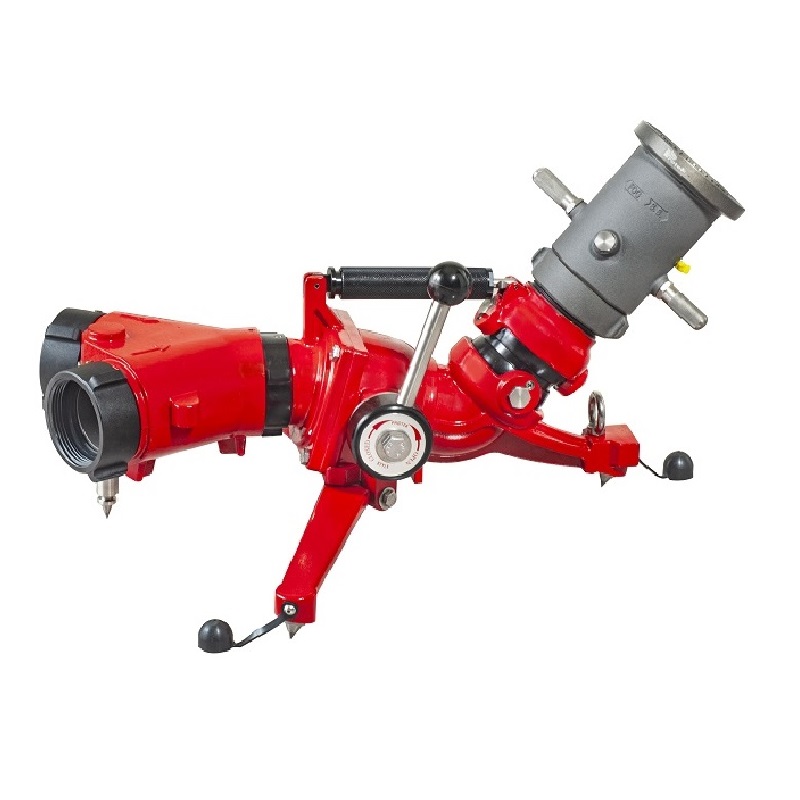

Dual-Inlet Portable Ground Monitor
Features
- Simple to set up for quick attack operations, and can be left unmanned to conserve manpower
- Flow rate of up to 500 GPM (1900 LPM)
- Horizontal rotation is adjustable 20˚ each side of centre
- Elevation is adjustable from 30˚ to 60˚ unmanned , and down to 20˚ when manned
- Durable lightweight hardcoat anodized aluminium alloy construction
- Dual-inlet model
- Ball shutoff with locking handle
- Carbide-tipped spikes at the base is resistant to long-term wear and provide excellent ground stability
- Large handle for excellent portability
- CNAS approved for 600-2 + 822 + 221
Specifications
| Style: 600-2 |
| Product Name: Dual-Inlet Portable Ground Monitor |
| Flow Rate: 500 GPM (1900 LPM) |
| Operating Pressure: 100 psi (7 bar) |
| Inlet: 2-1/2" (x2) (65 mm) |
| Outlet: 2-1/2" (65 mm) |
| Control: Manual |
| Vertical Travel: 30° to 60° above unmanned, down to 20° above manned |
| Rotational Travel: 20° Either Side |
| Material: Alloy |
| Finish: Red Powder Coating |
| Weight: 22 lbs (10 kg) |
| Compatible Products: 117, 118, 196, 314-TO, 368-TO, 375-TO, 822, 824, 881, 883, 886, 887 |
| Certifications: CNAS |
