622-1

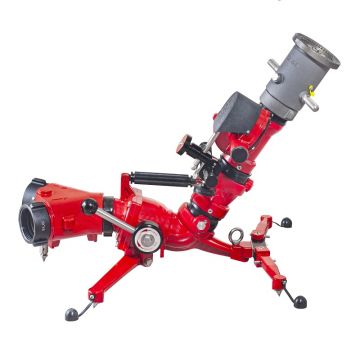

Single-Inlet Dual-Purpose Portable Ground Monitor
Features
- Full 3" waterway for flow rate of up to 1000 GPM (3800 LPM)
- Single swivel inlet model
- Vertical travel of 63˚ from 12˚ to 75˚ above with inbuilt 37˚ safety stop from 18˚ to 55˚ above
- Carbide-tipped spikes for extended resistance to wear
- Large handle for excellent portability
- Fully enclosed worm gear is protected from the elements
- Liquid-filled pressure gauge
- Dual spring-loaded lock pins for quick and easy breakapart
- Spring-loaded forged aluminium folding legs
- Compatible with a wide range of Protek nozzles and accessories
Specifications
| Style: 622-1 |
| Product Name: Single-Inlet Dual-Purpose Portable Ground Monitor |
| Flow Rate: 1000 GPM (3800 LPM) |
| Operating Pressure: 100 psi (7 bar) |
| Inlet: 2-1/2" (65 mm), 3" (76 mm), 3-1/2" (89 mm), 4" (102 mm), 5" (134 mm) |
| Outlet: 2-1/2" (65 mm) |
| Control: Single Handwheel |
| Vertical Travel: 63° from 12° to 75° above with inbuilt 37° safety stop from 18° to 55° above |
| Rotational Travel: 180° |
| Material: Alloy |
| Finish: Red Powder Coating |
| Weight: 32 lbs (15 kg) |
| Compatible Products: 119, 120, 190, 622 Monitor Base, 622 Monitor Liftoff, 656, 822, 823, 825, 830, 832, 835, 845, 847, 887, 888 |
