626

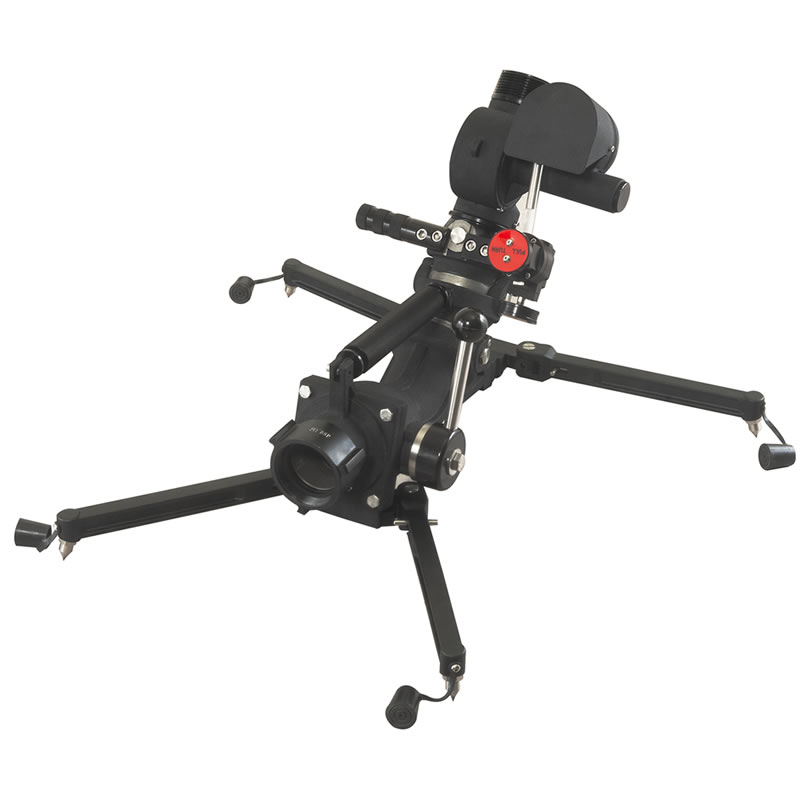

Oscillating Elevation Plus Portable Monitor
Features
- Wide sweeping water stream, designed for attack, cooling, protection and haz-mat situations
- Elevation is adjustable between 12˚ and 86˚ above horizontal
- The water-driven turbine induces the nozzle to oscillate at adjustable 14˚ to 20˚either side of the centre
- The on/off knob can be activated to stop oscillation at any point
- The oscillating mechanism can be disengaged to enable manual horizontal rotation
- Carbide tipped spikes at the base is resistant to long-term wear and provide excellent ground stability
- Large handle for excellent portability
- Inbuilt ball shutoff for efficient flow control
- Low profile for excellent ground stability and anchors safety strap for quick tie down
- Powder coating provides additional resistance to corrosion and wear
Specifications
| Style: 626 |
| Product Name: Oscillating Elevation Plus Portable Monitor |
| Flow Rate: 500 GPM (1900 LPM) |
| Operating Pressure: 100 psi (7 bar) |
| Inlet: 2-1/2" (65 mm) |
| Outlet: 2-1/2" (65 mm) |
| Control: Manual |
| Vertical Travel: 12° to 48° above unmanned, up to 86° above manned |
| Rotational Travel: 14° to 20° Either Side |
| Material: Alloy |
| Finish: Matte Black Powder Coating |
| Weight: 33 lbs (15 kg) |
| Compatible Products: 118, 143, 822, 824, 883, 886, 887 |
