602

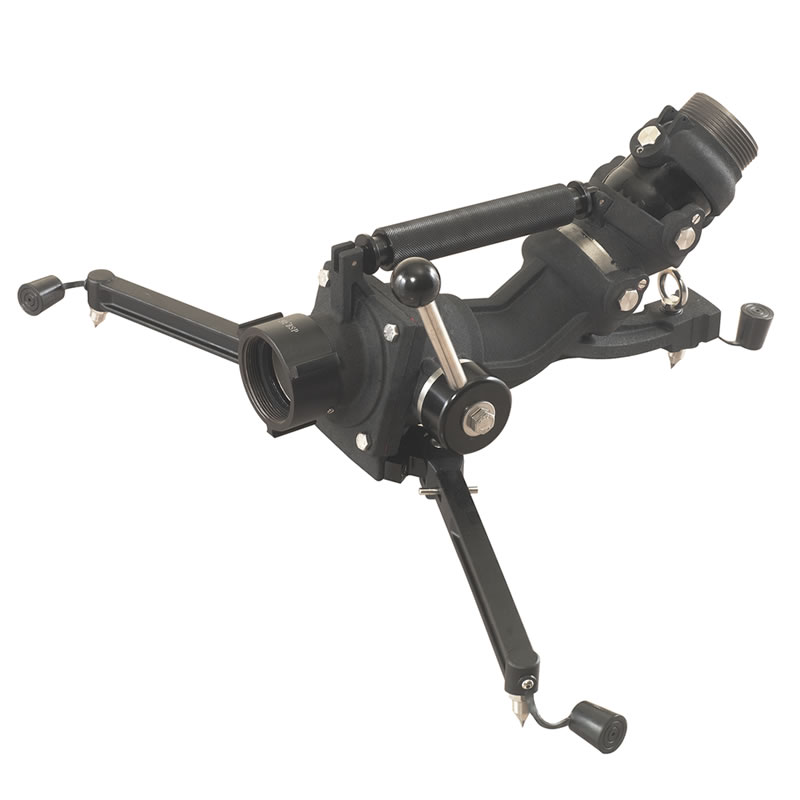

Elevation Plus Portable Monitor
Features
- Simple to set up for quick attack operations, and can be left unmanned to conserve manpower
- Flow rate of up to 500 GPM (1900 LPM)
- Elevation is adjustable between 12˚ and 86˚ above horizontal
- Horizontal rotation is adjustable 20˚ each side of centre
- Durable lightweight hardcoat anodized aluminium alloy construction
- Single-inlet model
- Ball shutoff with locking handle
- Carbide-tipped spikes at the base is resistant to long-term wear and provide excellent ground stability
- Large handle for excellent portability
Specifications
| Style: 602 |
| Product Name: Elevation Plus Portable Monitor |
| Flow Rate: 500 GPM (1900 LPM) |
| Operating Pressure: 100 psi (7 bar) |
| Inlet: 2-1/2" (65 mm) |
| Outlet: 2-1/2" (65 mm) |
| Control: Manual |
| Vertical Travel: 12° to 48° above unmanned, up to 86° above manned |
| Rotational Travel: 20° Either Side |
| Material: Alloy |
| Finish: Matte Black Powder Coating |
| Weight: 20 lbs (9 kg) |
| Compatible Products: 117, 118, 143, 314-TO, 368-TO, 375-TO, 822, 824, 881, 883, 886, 887 |
