625-2

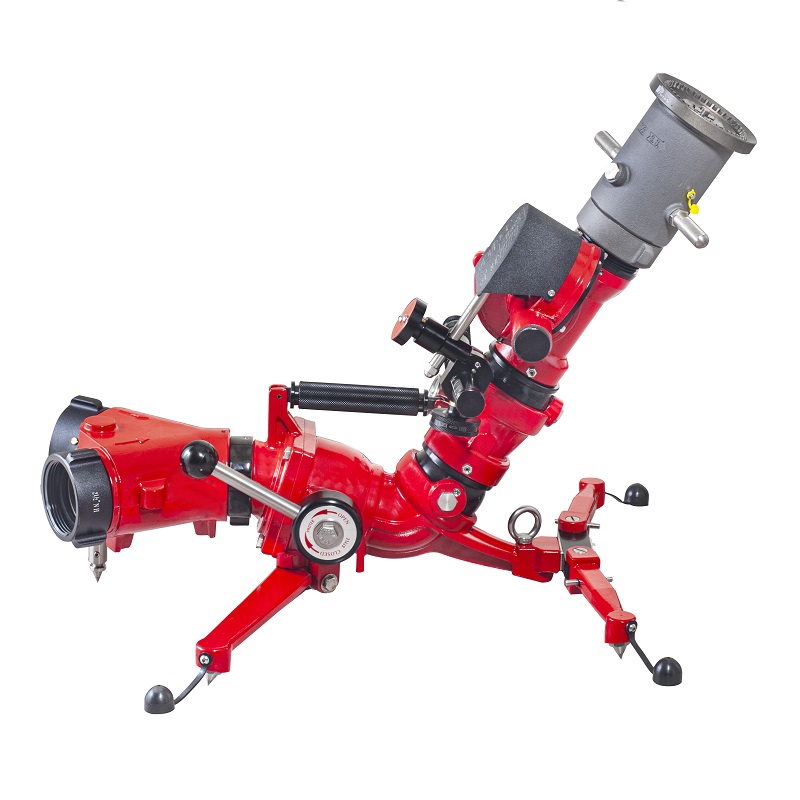

Dual-Inlet Portable Ground Monitor
Features
  • Effective sweeping water stream, designed for attack, cooling, protection and haz-mat situations
  • Dual swivel inlet model
  • The water-driven turbine induces the nozzle to oscillate at adjustable 12.5˚, 15˚ , 20˚ or 25˚either side of the centre
  • The on/off knob can be activated to stop oscillation at any point
  • The oscillating mechanism can be disengaged to enable manual horizontal rotation
  • Elevation is adjustable between 20˚ and 60˚ unmanned
  • Carbide tipped spikes at the base is resistant to long-term wear and provide excellent ground stability
  • Large handle for excellent portability
  • Inbuilt pressure gauge and ball shutoff for efficient flow control
  • Low profile for excellent ground stability and anchors safety strap for quick tie down
  • Powder coating provides additional resistance to corrosion and wear
Specifications
Style: 625-2
Product Name: Dual-Inlet Portable Ground Monitor
Flow Rate: 500 GPM (1900 LPM)
Inlet: 2-1/2" (x2) (65 mm)
Outlet: 2-1/2" (65 mm)
Control: Manual
Vertical Travel: 40° from 20° to 60° above unmanned
Rotational Travel: 12.5°, 15°, 20°, 25° Either Side
Material: Alloy
Finish: Red Powder Coating
Weight: 35 lbs (16 kg)
Compatible Products: 118, 822, 824, 883, 886, 887
Download
625
678.6KB
<
