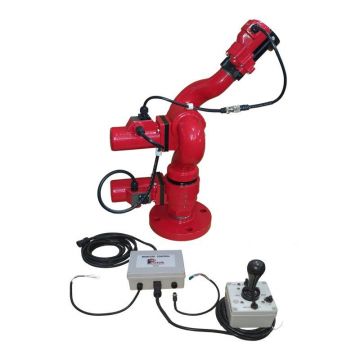

Wireless Remote Control Monitor
Features
  • Allows operator to control the stream from the monitor by remote for safety and efficiency

  • 4-1/4" waterway for flow rate of up to 2000 GPM (7600 LPM)

  • Cast-in turning vanes for efficient flow and minimal friction loss

  • Corrosion resistant brass construction

  • Comes with electric adjustable flow-baffle nozzle

  • Electronic controls with manual override

  • Brushless electric motor designed to eliminate sparks and reduce risk of ignition

  • Proprietary electric motors are certified with IP65 rating for dust and waterproof resistance

  • Automatic power off function during inactivity for enhanced performance and safety

  • Programmable automatic oscillation and stow position

  • Standard 24V with optional integrated AC-110V or AC-220V

Specifications
Style: 960
Product Name: Wireless Remote Control Monitor
Flow Rate: 2000 GPM (7600 LPM)
Inlet: 4" Flange, 6" Flange
Outlet: 3-1/2" (89 mm)
Control: Electric
Vertical Travel: 135° from 90° above to 45° below horizontal
Rotational Travel: Optional 180° or 300°
Material: Brass
Finish: Red Powder Coating
Weight: 124 lbs (56.5 kg)
Compatible Products: 856E
