922

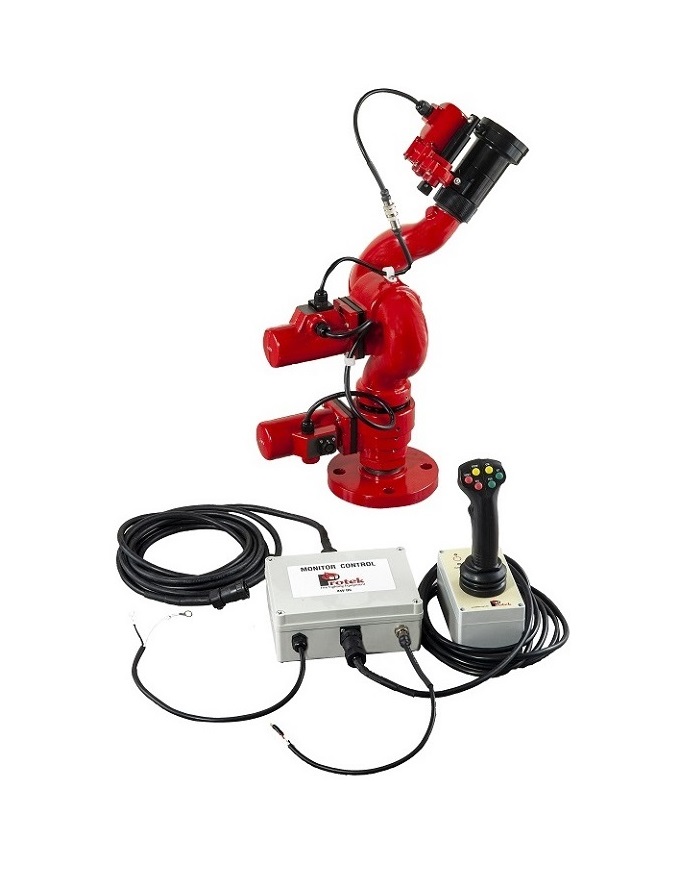

Remote Control Monitor
Features
- Designed for water, foam and CAF applications
- 2-1/4" waterway for flow rate of up to 400 GPM (1525 LPM)
- Durable, lightweight alloy construction
- Comes with electric adjustable flow-baffle nozzle
- Electric drives and circuit box are waterproof
- Gear motors totally enclosed and sealed to withstand harsh environments
- Current limit switch for pattern control, horizontal and vertical travel and open/close of electric valve
- Electronic controls with manual override
- Automatic power off function during inactivity for enhanced performance and safety
- Programmable automatic oscillation and stow position
- Standard 24V with optional 12V or DC power supply
- CNAS approved for 922 + 820E
Specifications
| Style: 922 |
| Product Name: Remote Control Monitor |
| Flow Rate: 400 GPM (1525 LPM) |
| Inlet: 2" (50 mm), 2-1/2" (65 mm) |
| Outlet: 1-1/2" (38 mm) |
| Control: Electric |
| Vertical Travel: 135° from 90° above to 45° below horizontal |
| Rotational Travel: Optional 180° or 300° |
| Material: Alloy |
| Finish: Red Powder Coating |
| Weight: 15 lbs (7 kg) |
| Compatible Products: 818E, 819E, 820E, 881, 883 |
| Certifications: CNAS |
