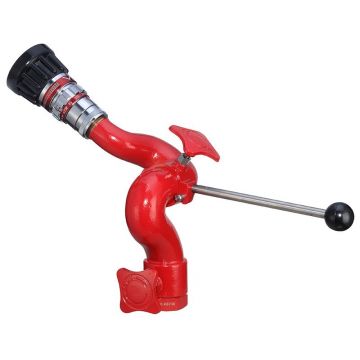

660
Industrial Monitor
Features
- Rugged and flow-efficient monitor with high reliability and minimal maintenance
- Full 4-1/4" waterway for flow rate of up to 2000 GPM (7570 LPM)
- Ideal for marine, offshore, industrial and other corrosive environment
- Corrosion resistant brass construction
- Cast-in turning vanes for efficient flow and minimal friction loss
- Highly manoeuvrable and easy to operate
- Positive friction locks for both horizontal and vertical travel to hold desired position
- Compact design and low-profile
- Optimise advanced computer aided design and testing technology
- FM approved
Specifications
| Style: 660 |
| Product Name: Industrial Monitor |
| Flow Rate: 2000 GPM (7600 LPM) |
| Operating Pressure: 200 psi (14 bar) |
| Inlet: 4" Flange, 6" Flange |
| Outlet: 3-1/2" (89 mm) |
| Control: Tiller Bar |
| Vertical Travel: 135° from 90° above to 45° below horizontal |
| Rotational Travel: 360° |
| Material: Brass |
| Finish: Red Powder Coating |
| Weight: 97 lbs (44 kg) to 110 lbs (50 kg) |
| Compatible Products: 121, 833, 837-BC, 890S |
| Certifications: FM |
