368E BC

368E-BC

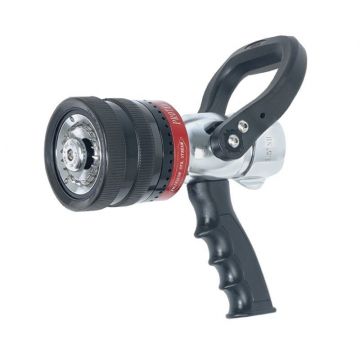

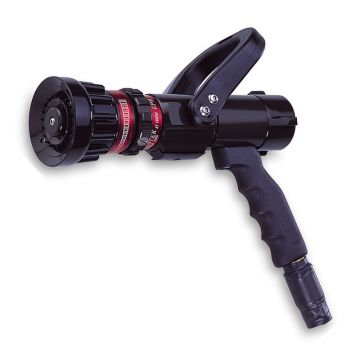

2-1/2" Selectable Gallonage Foam Nozzle
Features
  • Designed for water and foam applications with Class A, AFFF foam and other various foam types
  • Combination pattern nozzles with multiple flow settings
  • Dynamic nozzle with retractable foam aspiration sleeve
  • Brass construction for corrosion resistance
  • Suitable for use with eductors and on-board foam proportioning systems
  • Efficiently transforms from aspirated foam to wide protective fog pattern
  • Laser-etched anodized label for excellent durability and visibility
  • Flush without changing pattern or shutting down
  • Ergonomic design pistol grip available in various colours
  • Heavy-duty chrome plated metal shutoff ball for smooth action and long life
  • Stainless filter mesh prevents blockage caused by debris
Specifications
Style: 368E-BC
Product Name: 2-1/2" Selectable Gallonage Foam Nozzle
Flow Rate: 95-125-150-200-250 GPM (360-475-550-750-950 LPM)
Operating Pressure: 100 psi (7 bar)
Inlet: 2-1/2" (65 mm)
Teeth: Spinning
Material: Brass
Length: 11"-13.7" (280 mm-349 mm)
Weight: 18.3 lbs (8.3 kg)
