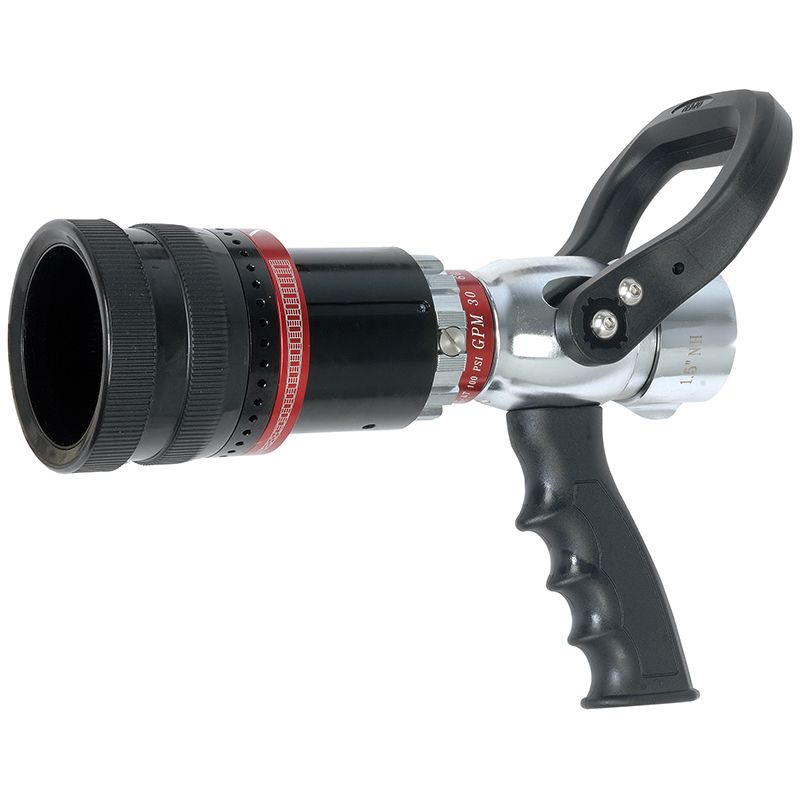

366E-BC
1-1/2" Selectable Gallonage Foam Nozzle
Features
- Designed for water and foam applications with Class A, AFFF foam and other various foam types
- Combination pattern nozzles with multiple flow settings
- Dynamic nozzle with retractable foam aspiration sleeve
- Brass construction for corrosion resistance
- Suitable for use with eductors and on-board foam proportioning systems
- Efficiently transforms from aspirated foam to wide protective fog pattern
- Laser-etched anodized label for excellent durability and visibility
- Flush without changing pattern or shutting down
- Ergonomic design pistol grip available in various colours
- Heavy-duty chrome plated metal shutoff ball for smooth action and long life
- Stainless filter mesh prevents blockage caused by debris
Specifications
Style: 366E-BC |
Product Name: 1-1/2" Selectable Gallonage Foam Nozzle |
Flow Rate: 30-60-95-125 GPM (115-230-360-475 LPM) |
Operating Pressure: 100 psi (7 bar) |
Inlet: 1-1/2" (38 mm) |
Material: Brass |
Length: 10"-12.5" (256 mm-316 mm) |
Weight: 8.8 lbs (4 kg) |
Download
737.6KB
