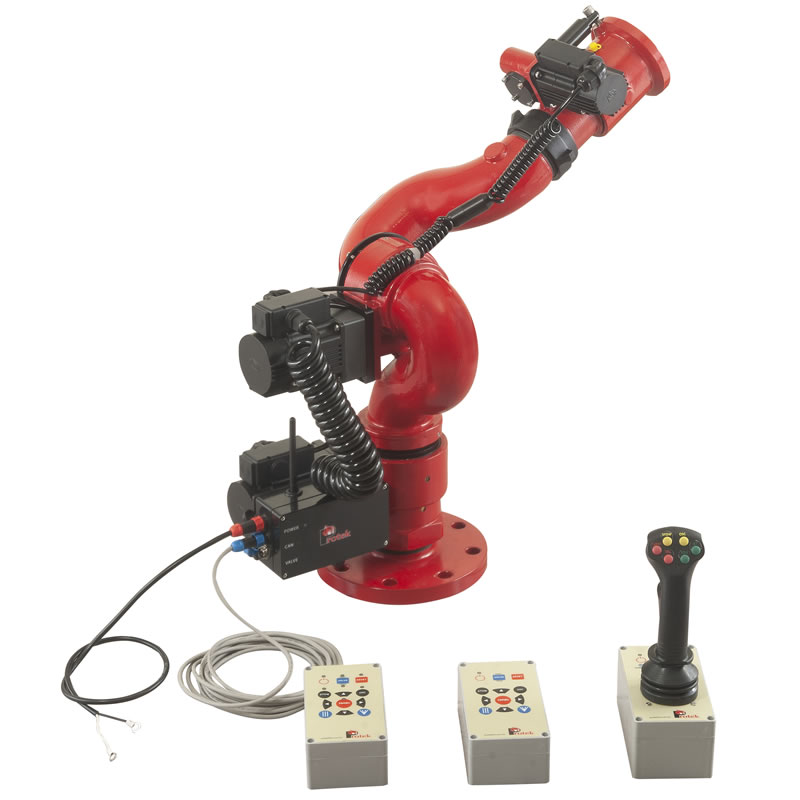

933E
Wireless Remote Control Monitor
Features
- Allows operator to control the stream from the monitor by remote for safety and efficiency
- Produces efficient flows up to 750 GPM via convenient and intuitive controls
- Features CAN control system with an easy “plug and play” setup
- Designed with dual-speed control for accelerated water stream positioning
- Cast-in turning vanes for efficient flow and minimal friction loss
- Durable, lightweight alloy construction
- Comes with electric adjustable flow-baffle nozzle
- Electronic controls with manual override
- Brushless electric motor designed to eliminate sparks and reduce risk of ignition
- Proprietary electric motors are certified with IP65 rating for dust and waterproof resistance
- Automatic power off function during inactivity for enhanced performance and safety
- Standard 24V with programmable automatic oscillation and stow position
- Optional mounted (933E) and stand-alone (933E-1) control module setup
Specifications
| Style: 933E |
| Product Name: Wireless Remote Control Monitor |
| Flow Rate: 750 GPM (2900 LPM) |
| Inlet: 3" (76 mm), 4" (102 mm) |
| Outlet: 2-1/2" (65 mm) |
| Control: Electric |
| Vertical Travel: 135° from 90° above to 45° below horizontal |
| Rotational Travel: Optional 180° or 300° |
| Material: Alloy |
| Finish: Red Powder Coating |
| Weight: 28 lbs (13 kg) |
| Compatible Products: 817E, 887, 887S, 887SE, 888, 888S |
Download
339.4KB
