143

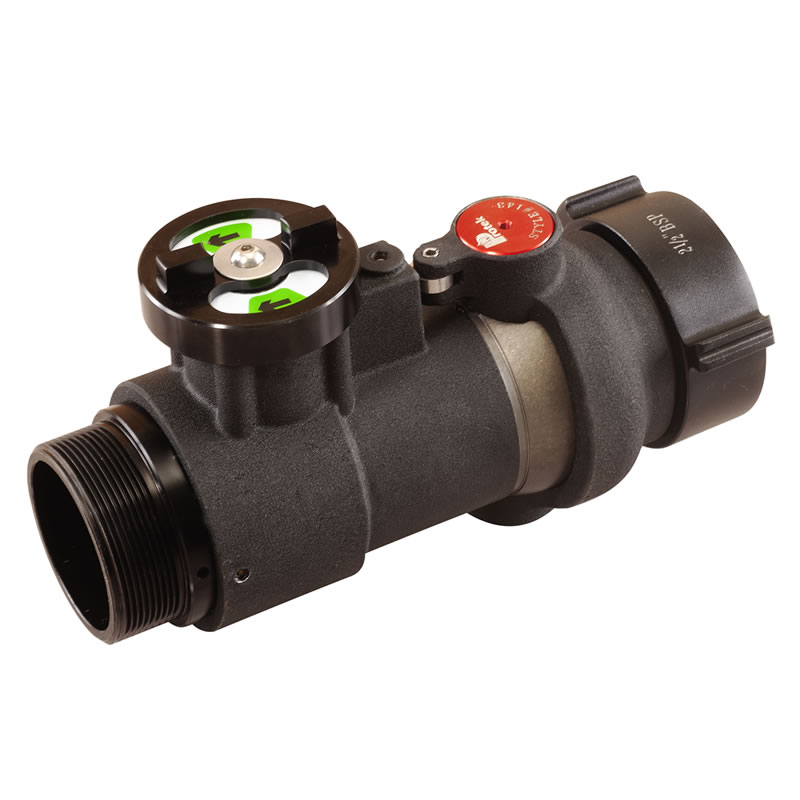

Safety Valve
Features
- Lightweight and compact design with stainless steel valve
- 2 1/2" inlet (65mm) with a full-time swivel and a 2 1/2" (65mm) outlet
- Maximum operating pressure of 230 psi or 16 bar
- Reduces around 80% of water at high flowing condition
- Ready and quick reset by closing monitor valve, turning reset button a ¼ turn, putting hose back in line, opening monitor valve and starting flow
- No water hammer of the pump
- Low friction Loss with 25 psi or 1.7 bar at 750 GPM or 2900 LPM
- Compatible with all Protek portable monitors, integrated option available
Specifications
| Style: 143 |
| Product Name: Safety Valve |
| Flow Rate: 750 GPM (2900 LPM) |
| Operating Pressure: 100 psi (7 bar) |
| Inlet: 2-1/2" (65 mm) |
| Outlet: 2-1/2" (65 mm) |
| Material: Alloy |
| Finish: Matte Black Powder Coating |
| Weight: 6.4 lbs (2.9 kg) |
| Compatible Products: 600-1, 602, 625-1, 626 |
