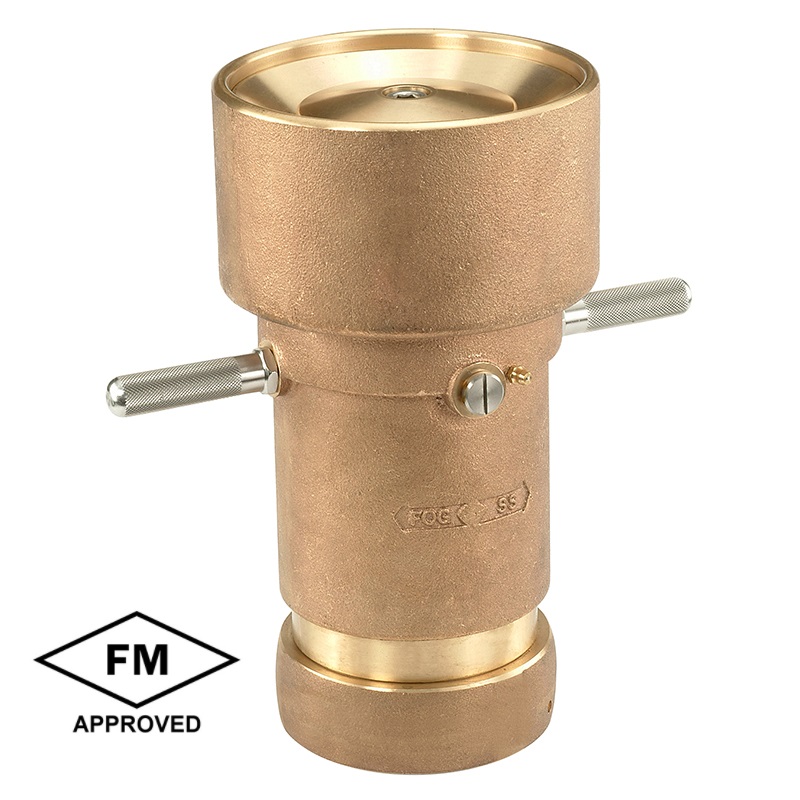

837-BC
Constant Gallonage Monitor Nozzle
Features
- Fixed constant flow that is factory preset to customers' specifications
- Simple, rugged nozzle with superior stream quality and reach
- Adjustable from straight stream to a dense fog pattern
- Corrosion resistant brass construction
- Large handle enables easy stream pattern management
- Compatible with Protek's wide range of monitors
- FM approved
- CNAS approved for 661 + 837-BC
Specifications
| Style: 837-BC |
| Product Name: Constant Gallonage Monitor Nozzle |
| Flow Rate: 1500 OR 2000 GPM (5700 OR 7600 LPM) |
| Operating Pressure: 100 psi (7 bar) |
| Inlet: 3-1/2" (89 mm) |
| Material: Brass |
| Length: 11" (279 mm) |
| Weight: 35 lbs (16 kg) |
| Compatible Products: 660, 661 |
| Certifications: FM, CNAS |
