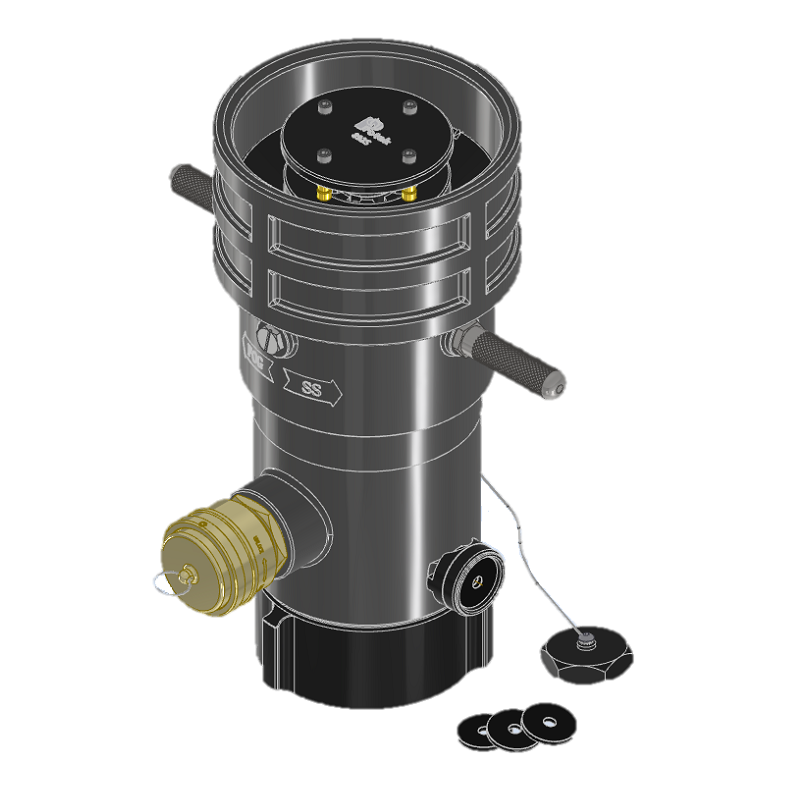

892S
Self-Educting Monitor Nozzle
Features
- Spring loaded baffle facilitates versatile flow rate selection
- Transform a water monitor into a foam station without additional equipment
- Designed for use with Class A and B foam
- Combination of straight stream and variable fog patterns
- Pick up rates of 1%, 3%, 6% for 750 and 1000 GPM and 1%, 3% for 1500 and 2000 GPM
- Interchangeable foam orifice inserts enable variable foam proportioning
- Inbuilt foam orifice plates store for convenient storage and easy change of pickup rate
- Durable lightweight aluminium alloy construction
- Optional drum pick up kit comes with 8' pickup hose
- Optional isolation valve for shutoff capability
Specifications
| Style: 892S |
| Product Name: Self-Educting Monitor Nozzle |
| Flow Rate: 750, 1000, 1500, 2000 GPM (2900, 3800, 5700, 7600 LPM) |
| Operating Pressure: 100 psi (7 bar) |
| Inlet: 3-1/2" (89 mm), Quick Connection |
| Foam Proportioning: 1%, 3%, 6% |
| Material: Alloy |
| Length: 13.8" (350 mm) |
| Weight: 15.4 lbs (7 kg) |
| Compatible Products: 660, 661 |
