203-95

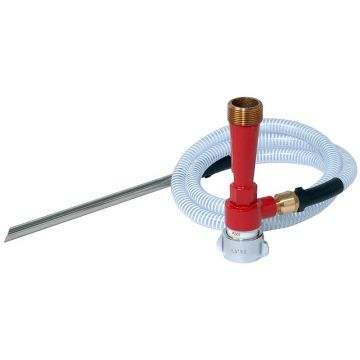

In-Line Eductor
Features
- Eductors are rated for optimum flow at 200 psi (14 bar) inlet pressure
- Works well with nozzles rated at 75 psi (5 bar) and 100 psi (7 bar)
- Ball check valve prevents back flow into foam concentrate
- Supplied with clear foam 6-1/2' pickup hose and 15" stainless steel tube
- Pickup rate may be set at any position between 0% to 6% with detentes at 1/4, 1/2, 1, 3, and 6%
Specifications
| Style: 203-95 |
| Product Name: In-Line Eductor |
| Flow Rate: 95 GPM (360 LPM) |
| Operating Pressure: 75 psi (5 bar), 100 psi (7 bar), 200 psi (14 bar) |
| Inlet: 1-1/2" (38 mm), 2-1/2" (65 mm) |
| Outlet: 1-1/2" (38 mm) |
| Foam Proportioning: 1/4%, 1/2%, 1%, 3%, 6% |
| Material: Alloy |
| Length: 8.6" (218 mm) |
| Weight: 3.5 lbs (1.6 kg) |
| Compatible Products: 366, 366-BC, 372, 372-BC, 373-BC, 374-BC |
