545

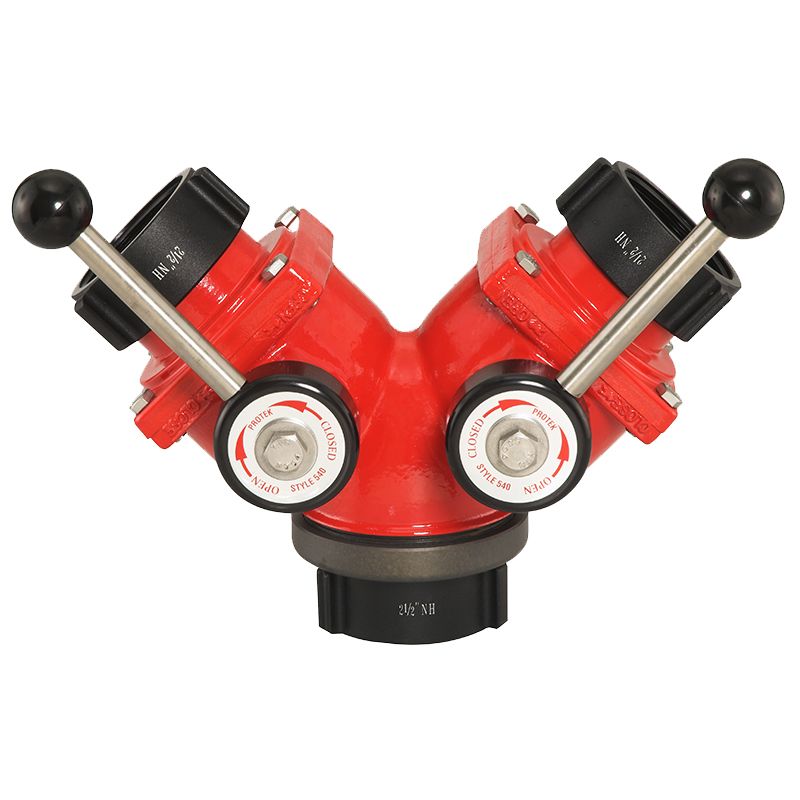

Suction Siamese
Features
- Working pressure up to 200 psi (14 bar)
- Used to combine several hose lines into one
- Durable lightweight alloy construction
- Used as suction inlet collection for pumpers
- Self-locking handle for positive handle positioning
- 2-1/2" swivel inlets come with strainers
Specifications
| Style: 545 |
| Product Name: Suction Siamese |
| Operating Pressure: 200 psi (14 bar) |
| Inlet: 2-1/2" (x2) (65 mm) |
| Outlet: 2-1/2" to 6" (65 to 150 mm) |
| Material: Alloy |
| Weight: 15.8 lbs (7.2 kg) |
