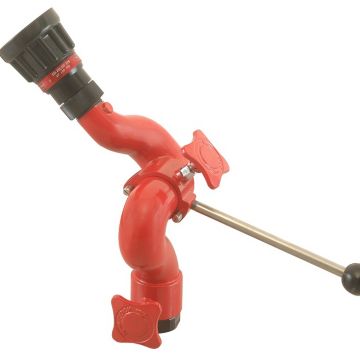

649S
Industrial Monitor with Integrated Shutoff
Features
- Integrated monitor ball-valve shutoff improves sealing and increases gating ability
- Rugged and flow-efficient monitor with high reliability and minimal maintenance
- Full 3" waterway for flow rate of up to 1250 GPM (4800 LPM)
- Ideal for marine, offshore, industrial and other corrosive environment
- Corrosion resistant brass construction
- Cast-in turning vanes for efficient flow and minimal friction loss
- Highly manoeuvrable and easy to operate
- Positive friction locks for both horizontal and vertical travel to hold desired position
- Compact design and low-profile
- Optimise advanced computer aided design and testing technology
- FM approved
Specifications
| Style: 649S |
| Product Name: Industrial Monitor with Integrated Shutoff |
| Flow Rate: 1250 GPM (4800 LPM) |
| Operating Pressure: 200 psi (14 bar) |
| Inlet: 3" (76 mm), 3" Flange, 4" Flange |
| Outlet: 2-1/2" (65 mm) |
| Control: Tiller Bar |
| Vertical Travel: 150° from 90° above to 60° below horizontal |
| Rotational Travel: 360° |
| Material: Brass |
| Finish: Red Powder Coating |
| Weight: 75 lbs (34 kg) |
| Compatible Products: 823-BC, 825-BC, 830, 832, 835-BC, 845-BC, 847-BC, 848-BC, 887-BC, 888-BC, 889-BC |
| Certifications: FM |
