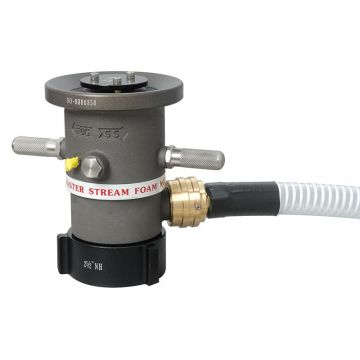

886-BC
Self-Educting Monitor Nozzle
Features
- Transform a water monitor into a foam station without additional equipment
- Designed for use with Class A and B foam
- Combination of straight stream and variable fog patterns
- Interchangeable foam orifice inserts enable variable foam proportioning
- Heavy-duty corrosion resistant brass construction
- Optional drum pick up kit comes with 1m rigid PVC tube with shutoff capability and 9' pickup hose
- Optional isolation valve for shutoff capability
Specifications
| Style: 886-BC |
| Product Name: Self-Educting Monitor Nozzle |
| Flow Rate: 350 GPM (1325 LPM) |
| Operating Pressure: 100 psi (7 bar) |
| Inlet: 2-1/2" (65 mm) |
| Foam Proportioning: 3%, 6% |
| Material: Brass |
| Length: 7.1" (180 mm) |
| Weight: 15 lbs (6.8 kg) |
