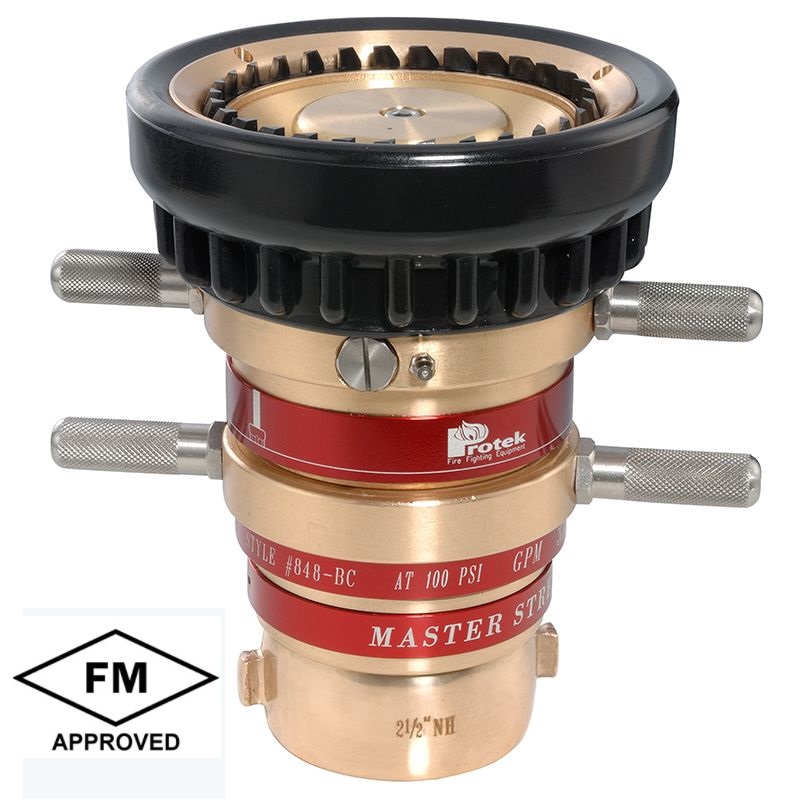

848-BC
Selectable Gallonage Monitor Nozzle
Features
- Master stream nozzle with four distinct, calibrated and selectable flow settings
- Combination of straight stream and variable fog patterns
- Brass construction for corrosion resistance
- Spinning teeth produce dense, wide, fully adjustable fog pattern
- Designed to change flow setting without shutting down
- Heavy-duty protective rubber bumper
- Clear labels for precise flow rate and pattern adjustment
- Low maintenance component
- FM approved
- CNAS approved for 648 + 848-BC
Specifications
| Style: 848-BC |
| Product Name: Selectable Gallonage Monitor Nozzle |
| Flow Rate: 500-750-1000-1250 GPM (1900-2900-3800-4800 LPM) |
| Operating Pressure: 100 psi (7 bar) |
| Inlet: 2-1/2" (65 mm) |
| Teeth: Spinning |
| Material: Brass |
| Length: 9.3" (236 mm) |
| Weight: 22 lbs (10 kg) |
| Compatible Products: 611, 612, 648, 649, 736 |
| Certifications: FM, CNAS |
