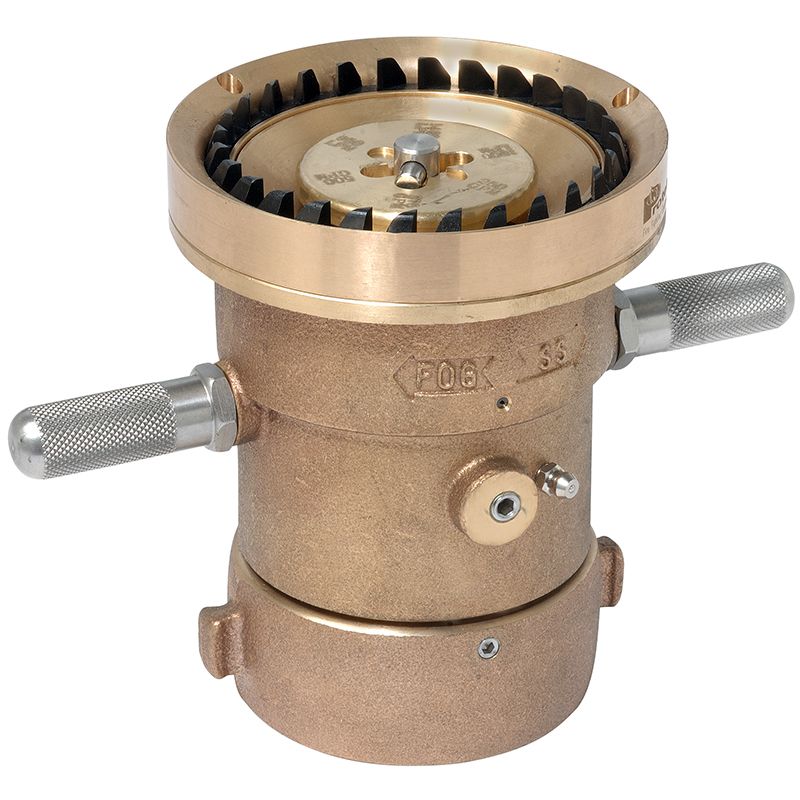

824-BC
Adjustable Flow Monitor Nozzle
Features
- Spring loaded baffle enables flow rate selection
- Brass construction for corrosion resistance
- Combination of straight stream and variable fog patterns
- Straight stream is clean and far-reaching
- Fog pattern is wide, dense and fully adjustable
- Flow and pressure are laser engraved on the baffle
- Nozzle must be shut down to change flow setting
- Low maintenance, high quality components
Specifications
Style: 824-BC |
Product Name: Adjustable Flow Monitor Nozzle |
Flow Rate: 250, 375, 500 GPM (950, 1420, 1900 LPM) |
Operating Pressure: 100 psi (7 bar) |
Inlet: 2-1/2" (65 mm) |
Teeth: Spinning |
Material: Brass |
Length: 5.9" (150 mm) |
Weight: 10 lbs (4.6 kg) |
Compatible Products: 611, 612, 636, 648, 649, 736 |
