374-BC

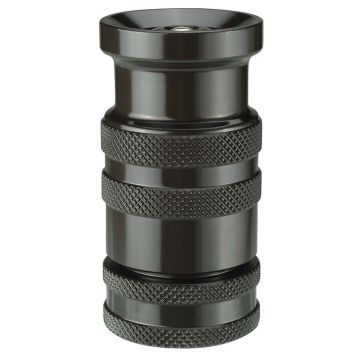

2-1/2" Shipboard Contant Gallonage Nozzle
Features
- Constant single-flow nozzle delivered with a calibrated flow disc installed
- Superb wide fog pattern for optimum fire fighter protection
- Brass construction for corrosion resistance
- Custom flow and pressure combinations are available with flow rate etched on the baffle on request
- Flow pattern detents facilitate positive positioning and smooth action
- Laser-etched anodized label for excellent durability and visibility
- Flush without changing pattern or shutting down
- Ergonomic design pistol grip available in various colours
- Heavy-duty chrome plated metal shutoff ball for smooth action and long life
- Stainless filter mesh prevents blockage caused by debris
- Minimal maintenance reflected in robust design, precision machining and quality materials
Specifications
| Style: 374-BC |
| Product Name: 2-1/2" Shipboard Contant Gallonage Nozzle |
| Flow Rate: 150, 175, 200 OR 250 GPM (550, 660, 750 OR 950 LPM) |
| Operating Pressure: 100 psi (7 bar) |
| Inlet: 2-1/2" (65 mm) |
| Teeth: Spinning |
| Material: Brass |
| Length: 11" (279 mm) |
| Weight: 14.7 lbs (6.7 kg) |
| Compatible Products: 214 |
